20 years of industry experience
Are mainly used in the telecommunication service center,
Railway Control Center ，internet/data exchange center,
industrial automation, automated office, DC screen/cabinet, etc.
To meet your various needs.
Product details

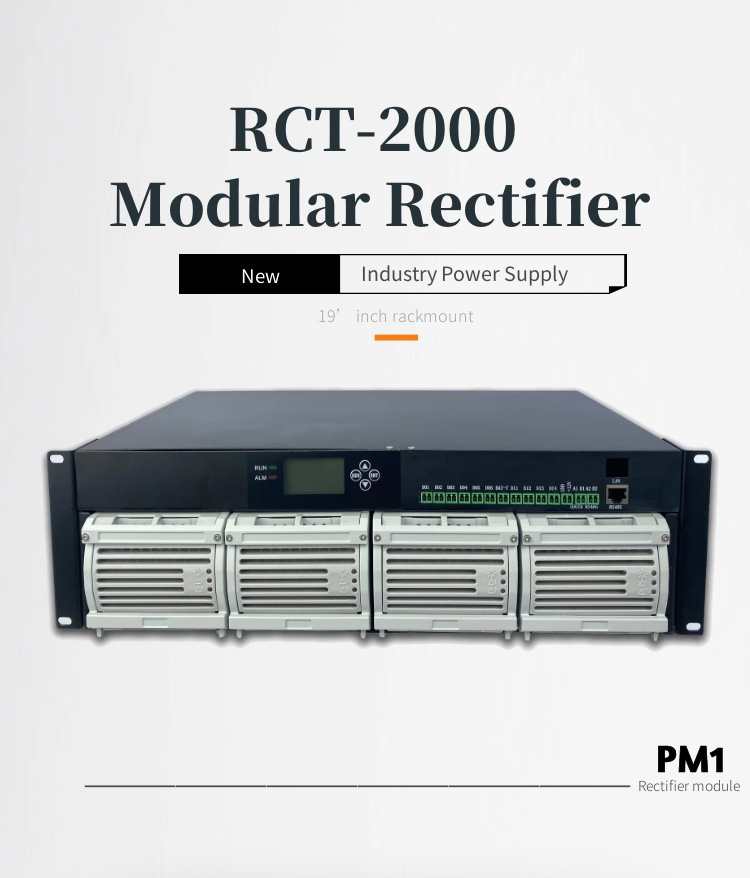

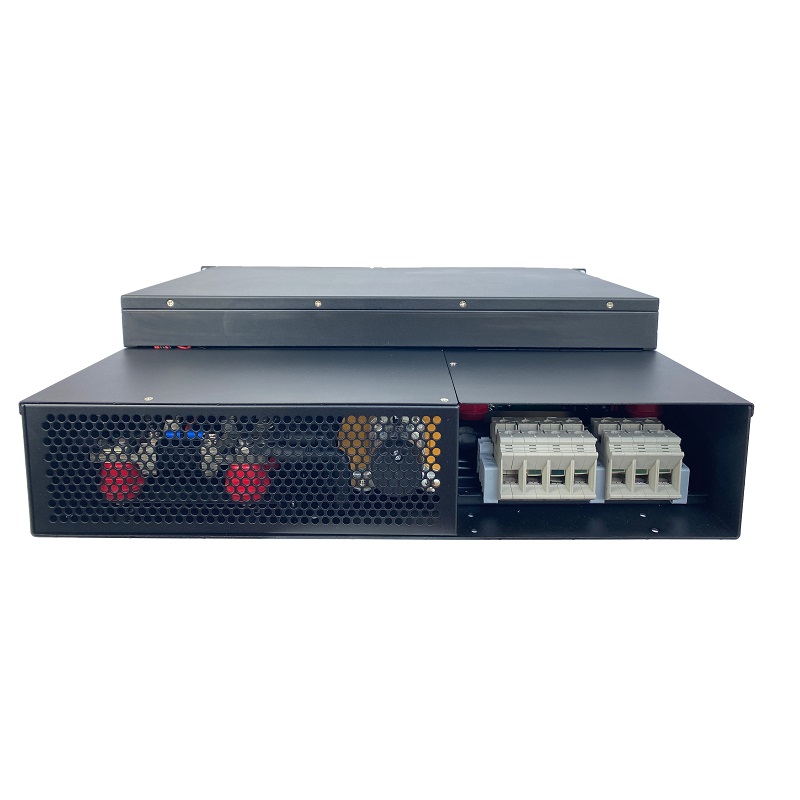

Rectifier 220V AC 48V DC 1.8KW 100 amp dc power supply Modular Telecom Rectifier System

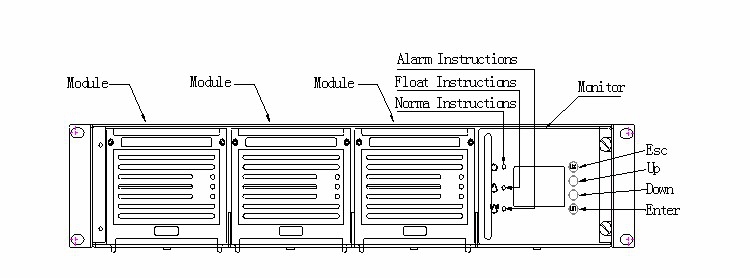

Embedded DC Power System is widely deployed in the Telecom/Industrial environment today. The system can be composed of one or more rectifier modules and monitoring modules. The power of the rectifier system can vary, depending on the number of rectifier modules. The system consists of power distribution units, rectifier modules) and monitoring modules. Configuration can be customized
Product name: | Rectifier 220V AC 24V DC 1.8KW 100 amp dc power supply Modular Telecom Rectifier System |
100 amp dc power supply | |
dc power supply | |
Telecom Rectifier System | |
Rectifier Module | BR241800 1PCS |
Efficiency | 93.2% |
Power Capacity(Max) | 1800W |
Input Current | 8.18A |
Input Protection (Recom) | 10.2A |
Height | 88mm(2RU) |
Width | 482mm(19 Inch) |
Depth | 410mm |
Weight | 15KG Appro. |
Classification | IP21 |
Customize Range:
Regard as HF Switching Power Supply / rectifier. we can customize are as following
1. Input:：220VAC +/-15%, 50/60HZ
Input:：110VAC +/-15%, 50/60HZ
2. Output：24VDC, 10A/20A/30A/40A/50A/60A/120A/180A/240A/300A
Output：48VDC, 10A/15A/20A/25A/30A/50A/60A/100A/150A/200A
Output：110VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output：125VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Company profile
AC INPUT | DC OUTPUT | |||
AC Con-fig. | 220Vac (L+N+PE) | Output Voltage | 42-58VDC 53.5Vdc nom. | |
Input Voltage Range | 90Vac-290Vac | Output Current(Max) | 330A | |
Frequency | 45-65Hz | Equ- charge(V) | 56.4V(42-58Vdc adjustable); | |
THDi | ＜5%@ full load ＜10% @half load Rated input & Output Voltage | Float voltage(V) | 53.5V(42-58Vdc adjustable); | |
Mains Connection | Terminals | Voltage Regulation | ≤±1% | |
Current Sharing | ≤±5% | |||
PF | 0.99@220VAC/300A, ≥0.98@220VAC/150A; | |||
Ripple voltage | ≤200mV<0-20mHZ> | |||
Output Accuracy(V)） | ≤0.6% | |||
Load Connection | 3 Group （Bus-bar） | |||
Battery Connection | 1 Groupsinergird.co.id (Bus-bar) | |||
BLVD | Yes | |||
Shunt | Yes | |||
